IP68 5x3mm RFID On Metal Tag with 1-6m Reading Distance and -20℃-+85℃ Working Temperature for Small Metallic Asset Tracking

Name: IP68 5x3mm RFID On Metal Tag with 1-6m Reading Distance and -20℃-+85℃ Working Temperature for Small Metallic Asset Tracking
Brand: Shenzhen Yuri RFID Tag Co.Ltd
Availability: InStock

Todos los productos

Etiquetas de NFC del RFID
(13)

Etiqueta del HF del RFID
(19)

Etiqueta del lavadero del RFID
(22)

RFID en etiqueta del metal
(30)

Etiquetas inteligentes del RFID
(16)

Etiqueta de la etiqueta engomada del RFID
(12)

Etiqueta de la frecuencia ultraelevada del RFID
(12)

Etiqueta de la pulsera RFID
(11)

Tarjeta elegante de IC
(8)

Tarjeta de epoxy
(4)

Tarjeta del HF RFID
(14)

Smart Card híbrido
(2)

SI tarjeta
(9)

Tarjeta de NFC RFID
(13)

Tarjeta de la frecuencia ultraelevada del RFID
(11)

Estoy en línea para chatear ahora

IP68 5x3mm RFID On Metal Tag with 1-6m Reading Distance and -20℃-+85℃ Working Temperature for Small Metallic Asset Tracking

Ampliación de imagen : IP68 5x3mm RFID On Metal Tag with 1-6m Reading Distance and -20℃-+85℃ Working Temperature for Small Metallic Asset Tracking

Datos del producto:

Nombre de la marca:	YURI

Pago y Envío Términos:

Cantidad de orden mínima:	100
Precio:	negotiable
Detalles de empaquetado:	Empaquetado de tres capas
Tiempo de entrega:	Según producto y cantidad

Contacto

IP68 5x3mm RFID On Metal Tag with 1-6m Reading Distance and -20℃-+85℃ Working Temperature for Small Metallic Asset Tracking

descripción

Nombre del producto:	etiqueta del metal del rfid	Frecuencia:	860-960mhz
Distancia de lectura:	1-6m	Temperatura de trabajo:	-20℃-+85℃
Tiempo de Read&Write:	100,000 veces	Vida de la vida:	10 años
Resaltar:	IP68 RFID On Metal Tag , 1-6m Reading Distance PCB UHF Metal Tag , -20℃-+85℃ Working Temperature Anti Metal RFID Tag

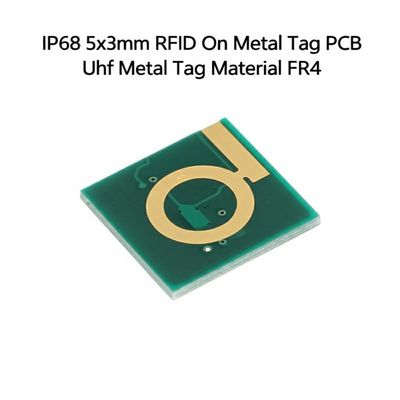

IP68 5x3mm RFID On Metal Tag PCB Uhf Metal Tag Material FR4

D=5mm U8 Small UHF PCB On-metal Tag

This On-metal tag is constructed with FR-4 materials with IP68 rated, it is high reliability and durability suitable for in all types of environments including outdoor. Waterproof, strong acid, strong base, suitable for small metallic asset tracking.

Chip Type: NXP UC 8
Material: FR-4
Dimensions: D=5x3mm

PCB On-Metal Tags

Small electronic devices for identification and tracking of metal objects.

Consist of:

Printed circuit board (PCB) with microprocessor and memory chip
Antenna for data transmission and reception
Casing/housing for protection
Designed to work effectively on metal surfaces
Use specialized antenna designs and signal processing techniques to transmit/receive data
Commonly used in industrial and logistics applications for asset tracking
Can track location and status of objects like shipping containers, pallets, and machinery

Product Detail

Physical Features
Model:	YRP8020
Material:	FR-4
Color:	Black
Dimensions:	D=5x3mm
Weight:	1.0g
Working Temp:	-40~+85℃
Survive Temp:	-40~+150℃
IP Rating:	IP68

RFID Features
RFID Standard:	ISO/IEC 18000-6 TypeC (EPC Gen2)
Chip Type:	NXP UC 8
EPC Memory:	128bits
TID Memory:	96bits
Read Range(Fixed Reader):	FCC:6.2m,on 15x2cm metal; 2.0m,on 14x14cm metal
Read Range(Handheld Reader):	FCC:2.0m,on metal

Other Features
Data Storage:	> 10 years
Re-write:	100,000 times
Installation:	Epoxy, Embedded
Customization:	Encoding, Designing, etc
Package:	200pcs/bag

Application

Weapon control
Bearing tracking
Auto spare parts tracking
Small metallic tools tracking, etc.
